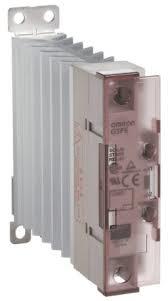

OMRON G3PE-225B 25 A 12-24V DC SOLİD STATE RELAY SOĞUTUCULU
KDV Dahil Toplam
0,00 TL
| Product classification | Solid State Relay for heater control |
|---|---|
| Number of elements | 3 |
| Operating rated voltage | 12 to 24 VDC |
| Operating voltage range | 9.6 to 30 VDC |
| Must operate voltage | 9.6 VDC max. |
| Must release voltage | 1 VDC min. |
| Isolation method | Phototriac |
| Rated load voltage | 100 to 240 VAC |
| Load voltage range | 75 to 264 VAC |
| Load current | 0.2 A to 25 A at 40 ℃ |
| Inrush current resistivity | 220 A (60 Hz, 1 cycle) 220 A (60 Hz, 1 cycle) |
| Output ON voltage drop | 1.6 V (RMS) |
| Leakage current | 10 mA (at 200 VAC) |
| Ambient temperature | Operating: -30 to 80 ℃ Storage: -30 to 100 ℃ (with no icing or condensation) |
| Ambient humidity | Operating: 45 to 85%RH (with no icing or condensation) |
| Operate time | 1/2 cycle of load power source + 1 ms max. |
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Zero cross function | Equipped |
| Indicator | Input indicator (INPUT (Yellow): Operating) |
| Insulation resistance | 100 MΩ (at 500 VDC) |
| Dielectric strength | 2500 V 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.175-mm single amplitude (0.35-mm double amplitude) |
| Shock resistance | 294 m/s**2 (98 m/s**2 with reverse mounting) |
| Terminal structure | Screw terminal |
| Mounting | DIN track |
| Weight | Approx. 1450 g |
